Template Library

SNID SAGE includes a curated library of 643 supernova and transient spectra for classification.

Built-in Templates

Templates are auto-downloaded on first use (~50 MB). No manual setup required.

Type Count Subtypes
Ia 268 norm, 91T, 91bg, Ia-csm, Ia-pec
II 108 IIP, IIL, IIn, IIb
Ic 68 Ic, Ic-BL
Ib 54 Ib, Ib-pec, Ib-Ca-rich
SLSN 53 SLSN-I, SLSN-II
Galaxy 27 Various galaxy types
TDE 16 Tidal disruption events
AGN 12 AGN-type1, QSO
GAP 10 Gap transients, LRN
Ibn 10 Type Ibn
CV 9 Cataclysmic variables
Star 3 Stellar spectra
LFBOT 3 Fast blue optical transients
Icn 1 Type Icn
KN 1 Kilonova

Storage Format

Templates are stored in HDF5 files grouped by type:

templates/
├── template_index.json      # Metadata index
├── templates_Ia.hdf5        # Type Ia templates
├── templates_II.hdf5        # Type II templates
├── templates_Ib.hdf5        # ... and so on
└── ...

Index Structure

template_index.json contains metadata for all templates:

Version note: "version" is the index/HDF5 format version (schema). The template bank version (downloaded contents) is tracked separately by the templates downloader.

{
  "version": "2.0",
  "template_count": 643,
  "grid_params": {
    "NW": 1024,
    "W0": 2500.0,
    "W1": 10000.0
  },
  "templates": {
    "sn1994D": {
      "type": "Ia",
      "subtype": "norm",
      "redshift": 0.0,
      "epochs": 17,
      "storage_file": "templates_Ia.hdf5"
    }
  }
}

HDF5 Structure

Each HDF5 file contains pre-rebinned spectra and FFTs:

Version note: metadata/version is the HDF5 format version (schema), not the template bank contents version.

templates_Ia.hdf5
├── metadata/
│   ├── version: "2.0"
│   ├── grid_rebinned: true
│   └── wavelength: [2500...10000]  # 1024 points
└── templates/
    └── sn1994D/
        ├── flux: [...]           # Rebinned spectrum
        ├── fft_real: [...]       # Pre-computed FFT
        ├── fft_imag: [...]
        ├── type: "Ia"
        ├── subtype: "norm"
        ├── age: 0.0
        ├── epochs: 17
        └── epoch_data/           # Multi-epoch data
            ├── epoch_-10/
            ├── epoch_0/
            └── ...

Template Manager GUI

Access via Tools → Template Manager or the toolbar button.

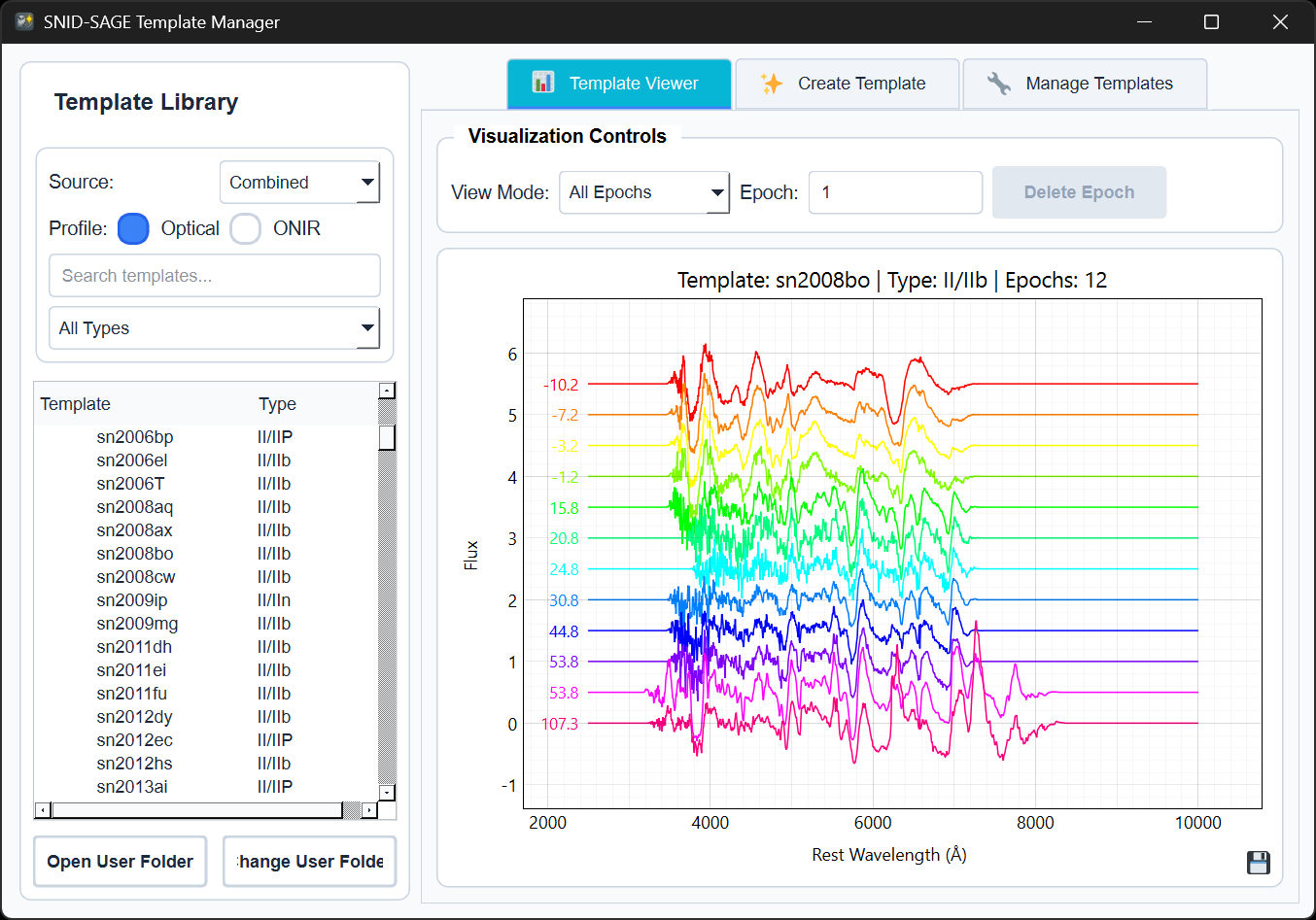

Template Manager showing multi-epoch template sn2008bo with 12 epochs displayed as stacked spectra

The Template Manager lets you: - Browse all templates with search and type filters - Preview spectra with metadata - View multi-epoch template evolution - Create new templates from your spectra - Import templates in batch from CSV

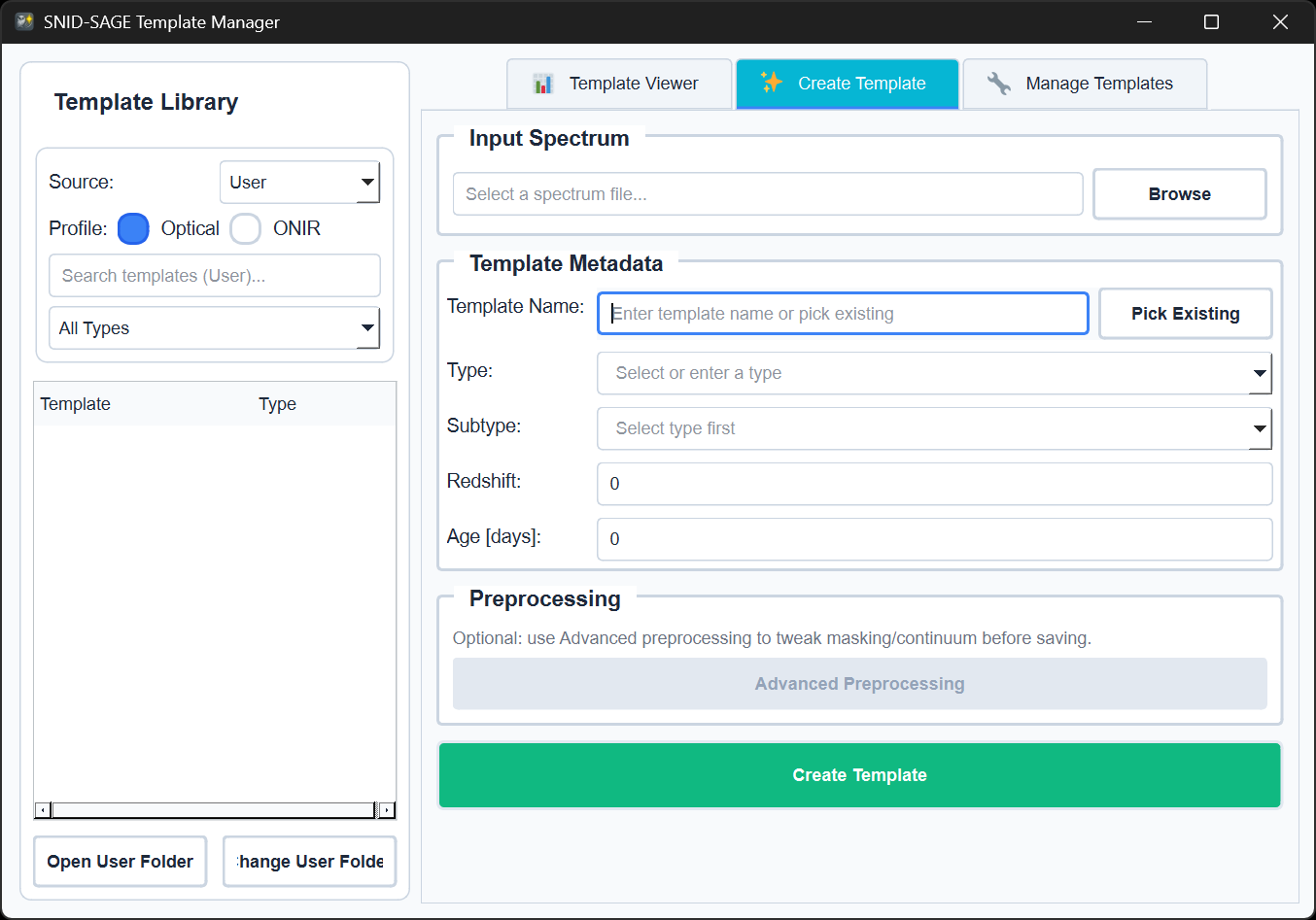

Template creation form with fields for name, type, subtype, redshift, and age

Creating Templates

  1. Open Template Manager → Create tab
  2. Load your spectrum file
  3. Fill in metadata (name, type, subtype, age, redshift)
  4. Preview and save

Batch Import

For many templates at once: 1. Go to Manage tab → Batch Import 2. Provide a CSV with columns: object_name, spectrum_file_path, age, redshift, type, subtype 3. Multiple rows with the same name create multi-epoch templates

User Templates

Custom templates are stored separately from the built-in bank.

Location

  • User folder: Set on first use and changed later from snid-sage-templates via Change User Folder
  • User index: template_index.user.json
  • User HDF5: templates_Ia.user.hdf5, etc.

Override Behavior

When a user HDF5 exists for a type (e.g., templates_Ia.user.hdf5), it replaces the built-in templates for that type. This prevents duplicates and ensures your edits take effect.

ONIR Templates

For near-infrared analysis, use --profile onir. ONIR templates cover 2500–25000 Å and are stored in separate files (templates_Ia_onir.hdf5, etc.).

CLI Commands

# List templates
sage templates list

# Search templates
sage templates search "94D"

# Show template info
sage templates info sn1994D

# Import from CSV
sage templates import-csv data\list.csv --dest User_templates\
